HTTP/HTTPS Overview

INDEVOLT micro storage systems provide a REST API based on HTTP/HTTPS, which can be used for device monitoring, parameter reading, and control within a local network. All APIs use JSON as the data exchange format.

---

1. Preparations

Step 1: Install Tools

• Postman / cURL: Used for invoking HTTP APIs to retrieve device data or update device configurations.

Step 2: Enable API

Device APIs are disabled by default and must be enabled before use. OpenData provides three modes:

• HTTP
• HTTP Digest
• HTTPS (Currently unsupported, coming soon)

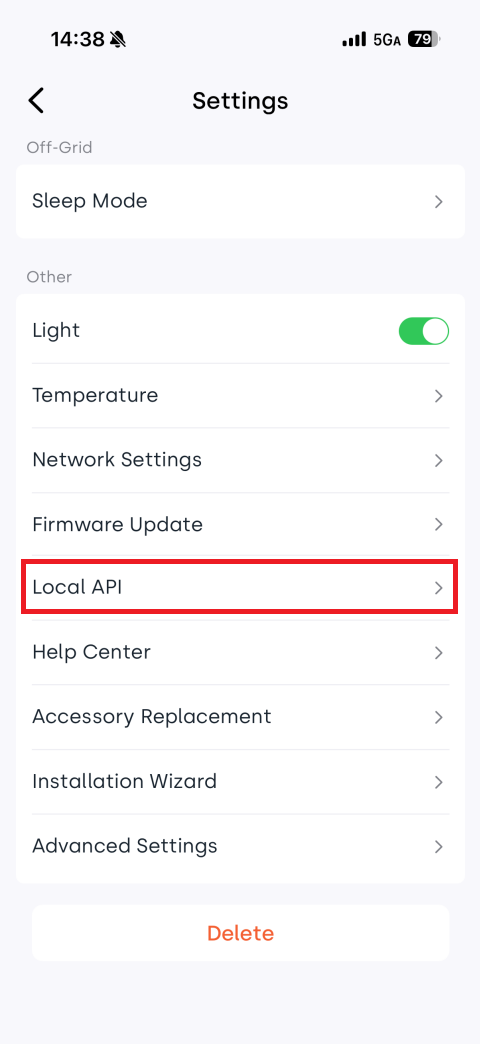

You can configure the Local API in the INDEVOLT App:

• Device is online: It is recommended to use Cloud Configuration, which is simpler to operate
• Device is not online: You can use Local Bluetooth Configuration to connect directly to the device and complete the setup

Cloud

Local Bluetooth

Step 3: Check Firmware Version

If it is lower than the minimum version listed in the table below, please update the firmware.

Model	Applicable firmware version
BK1600 / BK1600 Ultra	V1.3.0A_R006.072_M4848_00000039
SolidFlex 2000 / PowerFlex 2000	CMS：V1406.07.002E
PowerFlex 3000 AC PowerFlex 3000 Hybrid SolidFlex 3000 AC SolidFlex 3000 AC Pro SolidFlex 3000 Hybrid Pro	CMS: V1409.08.3034
SolidFlex 1200	CMS: V1407.07.202E

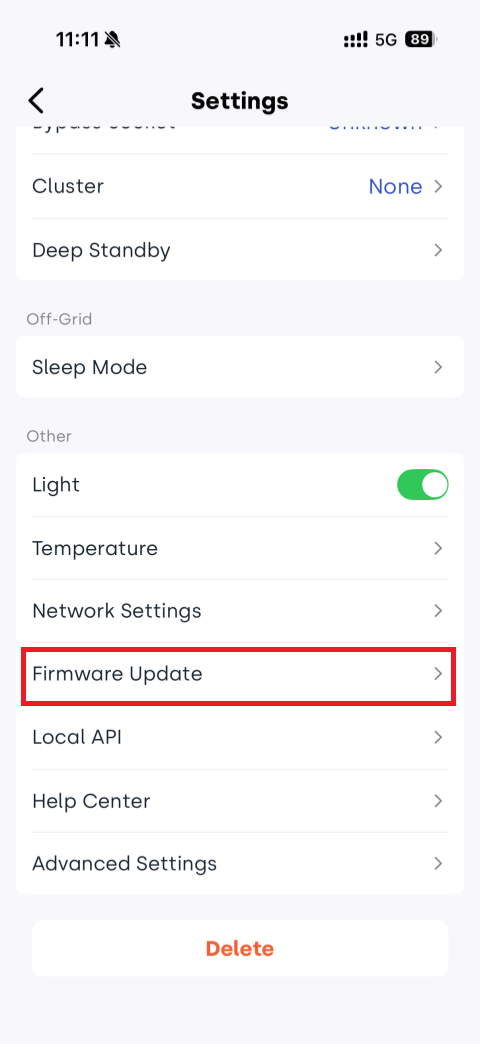

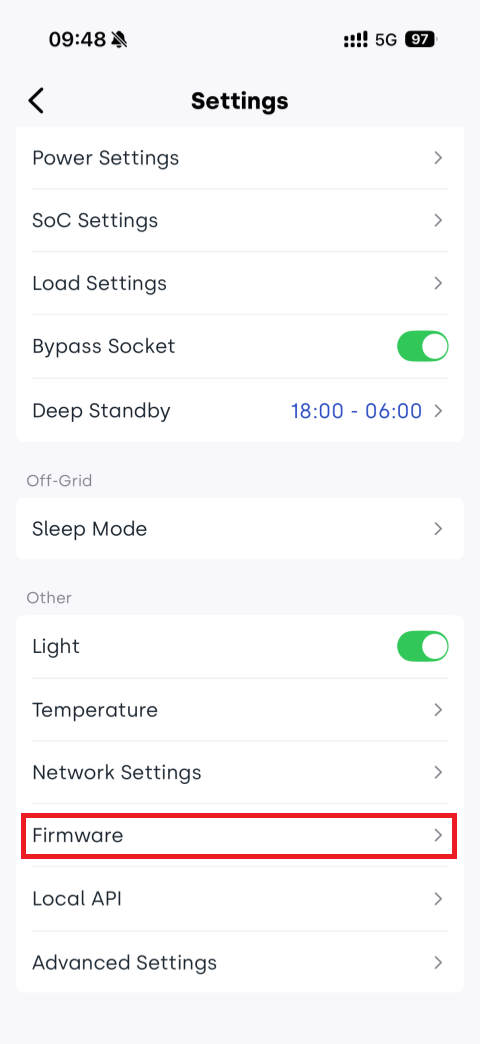

You can check the device firmware version in the INDEVOLT app.

Cloud

Local Bluetooth

Step 4: Obtain IP Address

Choose any one of the following methods:

• 🧩Method 1: Query via router’s management list;

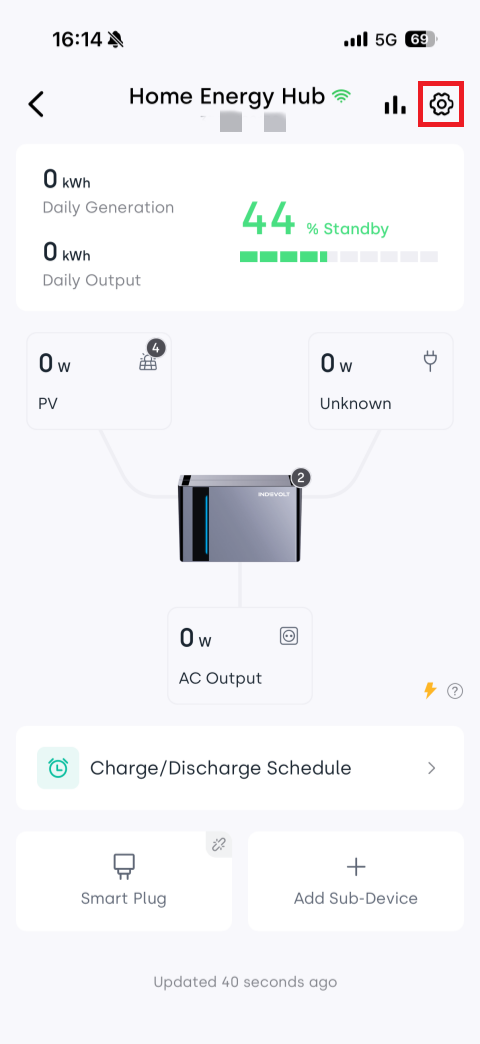

• 🧩Method 2: Check in App device settings:



• 🧩Method 3: Obtain IP via UDP broadcast:

  (1) Ensure the device's WiFi network and computer are on the same local area network.
  (2) Open a network debugging tool.
  (3) Select UDP protocol.
  (4) Select Local Host Addr.
  (5) Set Local Host Post to 10000.
  (6) Click Open.



  (7) Configure Remote with broadcast address and port: 255.255.255.255:8099.



  (8) Enter AT command in message box: AT+IGDEVICEIP.
  (9) Click Send.



  (10) INDEVOLT devices on the same network will respond with their IP address and serial number (SN).



---

2. HTTP Usage

2.1 Request Structure

Request Methods

Method	Description
GET	Requests the server to return specified resources.
POST	Requests the server to perform specified operations.

Request Address

http://{IP_ADDRESS}:8080/rpc/{API}

where

• {IP_ADDRESS}: Device IP address.
• {API}: API name, for example Indevolt.GetData. For the complete API description, see API Reference.

Request Example

• Retrieve device data:

  POST http://192.168.31.213:8080/rpc/Indevolt.GetData?config={"t":[1664,1665]}

cURL command Example

• Retrieve battery SOC:

  curl -g -X POST -H "Content-Type: application/json" "http://192.168.1.75:8080/rpc/Indevolt.GetData?config={\"t\":[6002]}"

2.2 Rate Limit

To ensure system stability, all HTTP APIs are subject to the following limits:

Type	Limit
Recommended request interval	≥ 5 seconds
Minimum Request Interval	1 second
Response Time	1 second

2.3 Errors

Status code	Description	Explanation
400	Bad Request	The server cannot understand the format of the request; the client should modify the request and try again.
401	Unauthorized	The request requires authentication; the client needs to provide valid credentials.
403	Forbidden	The server understands the request but refuses to execute it, usually due to permission issues.
404	Not Found	The server cannot find the requested resource, possibly because the resource does not exist or has been deleted.
405	Method Not Allowed	The requested method is incompatible with the resource, for example, performing a write operation on a read-only resource.
408	Request Timeout	The server times out while waiting for the request; the client can retry later.
409	Conflict	The request conflicts with the current state of the resource, for example, multiple users editing the same resource simultaneously.
410	Gone	The requested resource has been permanently deleted and there is no new address.
500	Internal Server Error	The server encounters an unknown error and cannot complete the request.
501	Not Implemented	The server does not support the requested method and cannot execute it.
502	Bad Gateway	The server, acting as a gateway or proxy, received an invalid response from the upstream server.
503	Service Unavailable	The server is currently unable to handle the request, possibly due to overload or maintenance.
504	Gateway Timeout	The server, acting as a gateway or proxy, did not receive a timely response from the upstream server.
505	HTTP Version Not Supported	The server does not support the HTTP version used in the request.

---

3. HTTP Digest

Digest Authentication verifies user identity in network communications, preventing plaintext password transmission.

In HTTP + Digest mode:

• New or factory-reset devices must first use the User.SetConfig interface to modify the default password.
• Other APIs become accessible only after successful password modification.

Required tools

• ASCII to hexadecimal converter
• Hexadecimal to base64 converter
• AES_GCM encryption tool

Password modification example

1. Convert the new password, original password, and random number from string to hexadecimal.

	ASCII string	Hexadecimal
New password	qwertyui	71 77 65 72 74 79 75 69
Original password	qazwsxed	71 61 7a 77 73 78 65 64 00 00 00 00 00 00 00 00 (Supplement 0 to 16 bytes)
Random number	123456	31 32 33 34 35 36 00 00 00 00 00 00 (Supplement 0 to 12 bytes)

2. Use AES_GCM encryption tool to encrypt, fill in the corresponding information as follows.



3. Convert ciphertext and tag from hexadecimal to base64.

	Hexadecimal	Base64
Ciphertext	4e b2 90 67 54 02 d4 c4	TrKQZ1QC1MQ=
Tag	cf 0b d0 4e 37 a0 e6 bb cb 74 1b cb ce ab 72 9a	zwvQTjeg5rvLdBvLzqtymg==

4. Complete the digest authentication fields and send the User.SetConfig request with the new password. The result returns true, indicating successful modification.

   POST http://{IP_ADDRESS}:8080/rpc/User.SetConfig?config={"Password":"{PASSWORD}"}

   where

   • {IP_ADDRESS}：Device IP address.
   • {PASSWORD}：Base64-encoded ciphertext encrypted with AES128-GCM.


Parameter	Type	Description	Attribute
Username	String	Default opend	required
Password	String	Default device key. - Using the default password can only request the User.SetConfig interface to change the password. - Once the password is modified, using the modified password can request other interfaces.	required
Realm	String	- If calling the User.SetConfig interface to update the password, you need to pass the AES128-GCM tag value. - If calling other interfaces in Base64 format, you may use a random value.	required
Nonce	Default type of Digest	Random values can be used	required
Algorithm	Default type of Digest	MD5	required
qop	Default type of Digest	auth	required
Nonce Count	Default type of Digest	Random values can be used	required
Client Nonce	Default type of Digest	Random values can be used	required

---

4. HTTPS (Not Supported Yet)

HTTPS encrypts communication data based on TLS and verifies the server identity through digital certificates, effectively preventing data from being intercepted or tampered with.

HTTP and HTTPS use the same API interfaces. The request methods, request parameters, and response formats are exactly the same. You only need to replace the protocol in the request URL from http:// to https://.

---

5. FAQ

Q: HTTP request returns 401 Unauthorized.

• Verify the username and password for Digest Authentication.
• New/factory-reset devices only support access to the designated interface: User.SetConfig. Refer to Digest Authentication section - other APIs become accessible after successful password modification and authentication with the new password.

Q: Device fails to return IP address after broadcast command.

The OpenData API is not enabled, making this function inactive. Refer to Enable API section.
