OpenData API

1️⃣ Introduction

OpenData is a lightweight communication framework designed for WiFi-based INDEVOLT IoT devices. Devices connect to local networks via WiFi, supporting both active data push and response to external queries.

Core Features

Device data acquisition: Real-time pulling of device data.
Device control: Dynamic adjustment of device parameters and configurations.

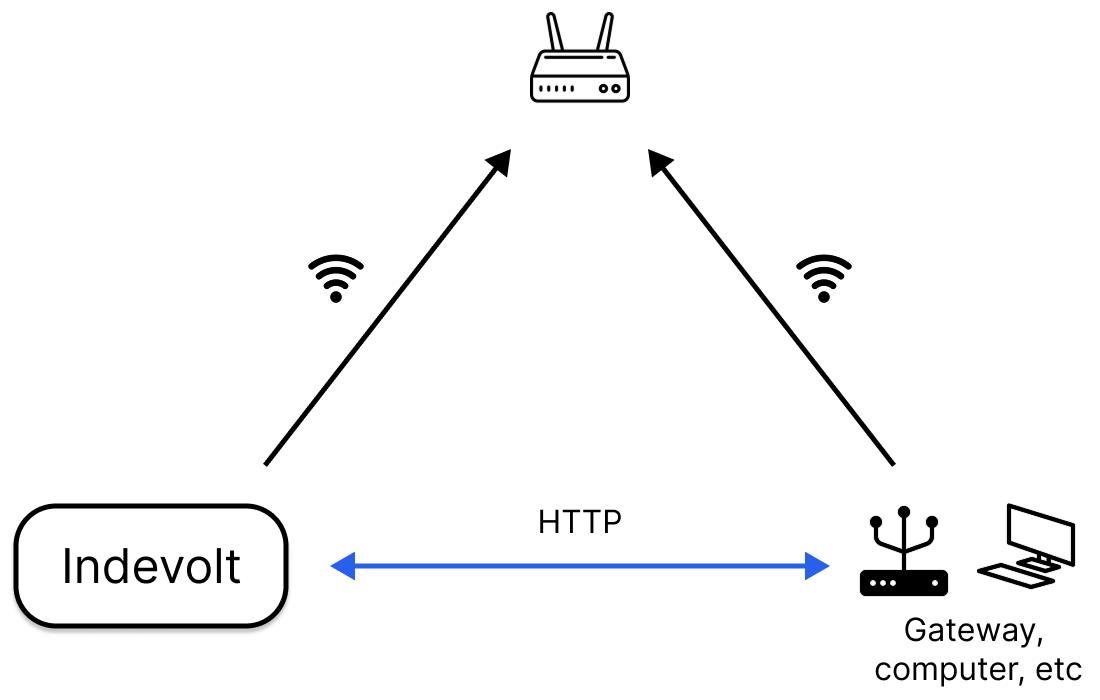

Use Cases

Receiving external HTTP query requests.

2️⃣ Preparations

Step 1: Install Tools

Postman / cURL: Used for invoking HTTP APIs to retrieve device data or update device configurations.

Any network debugging tool (e.g., NetAssist): Used for receiving UDP broadcasts.

Step 2: Enable API

Device APIs are disabled by default and must be enabled before use. OpenData provides three modes:

HTTP

HTTP+ Digest Authentication

HTTPS (Currently unsupported, coming soon)

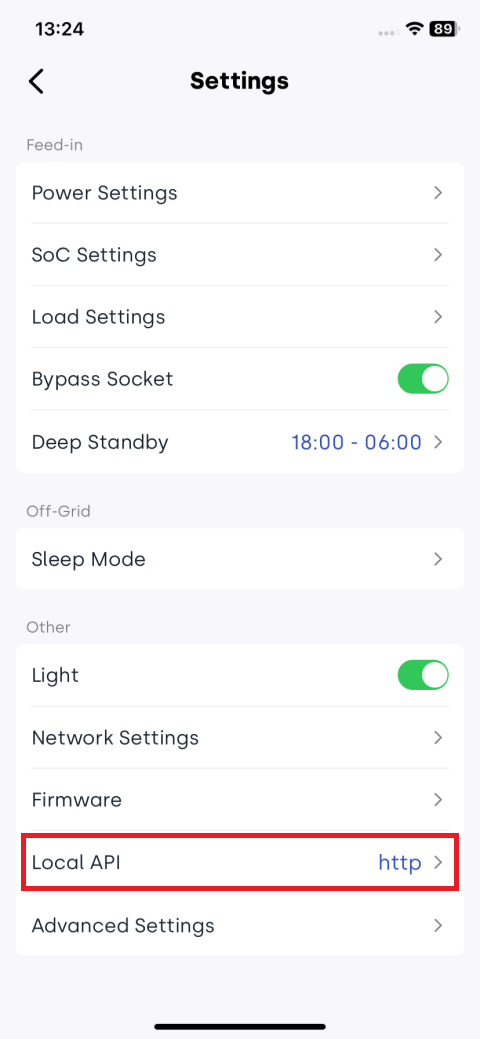

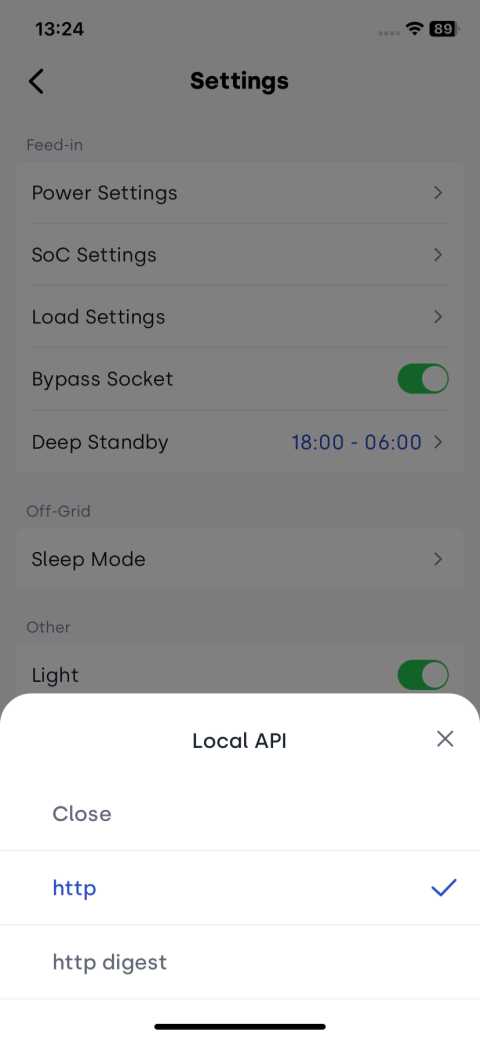

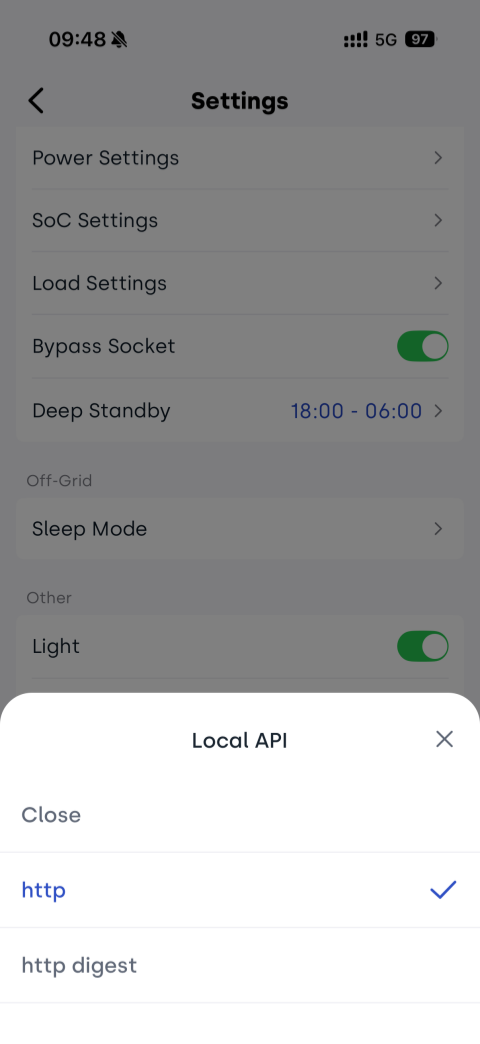

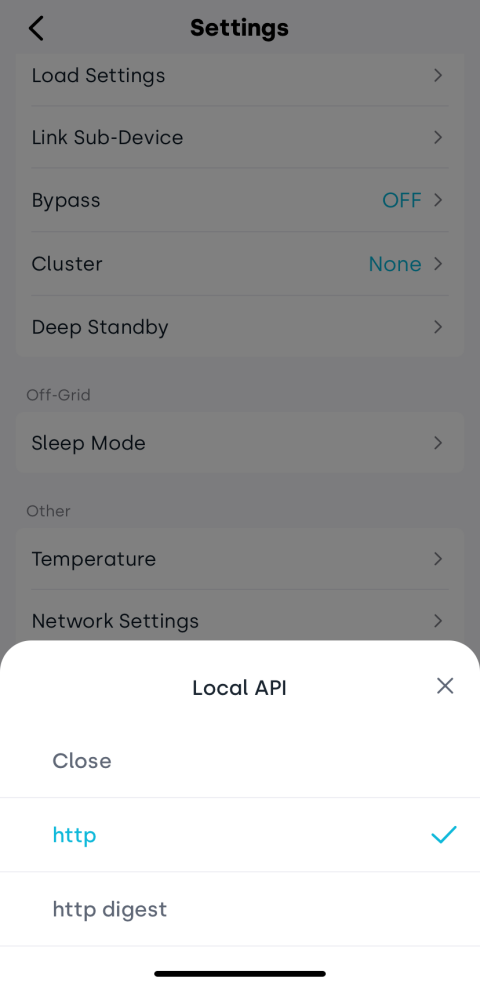

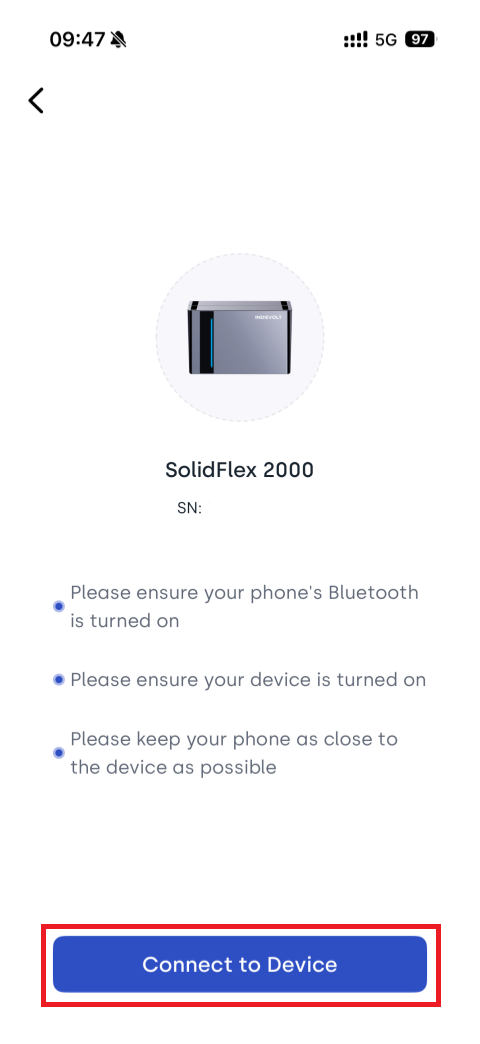

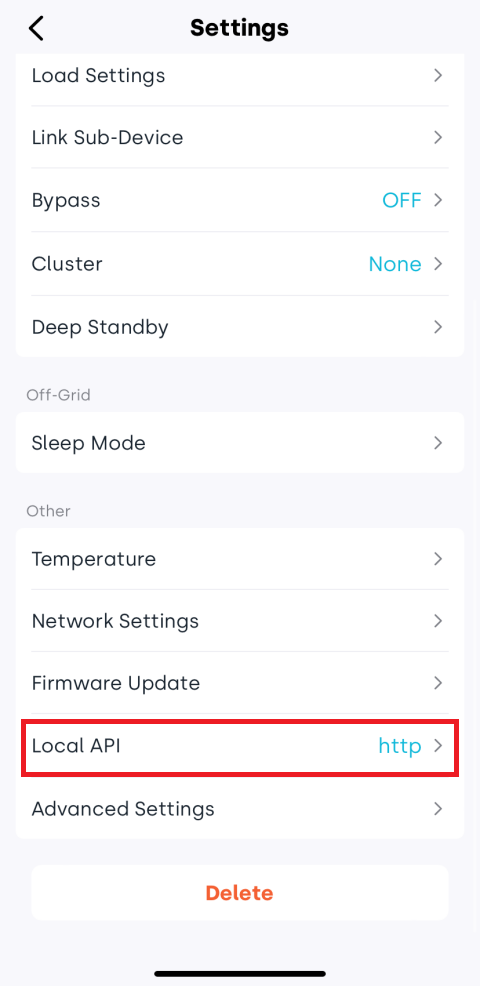

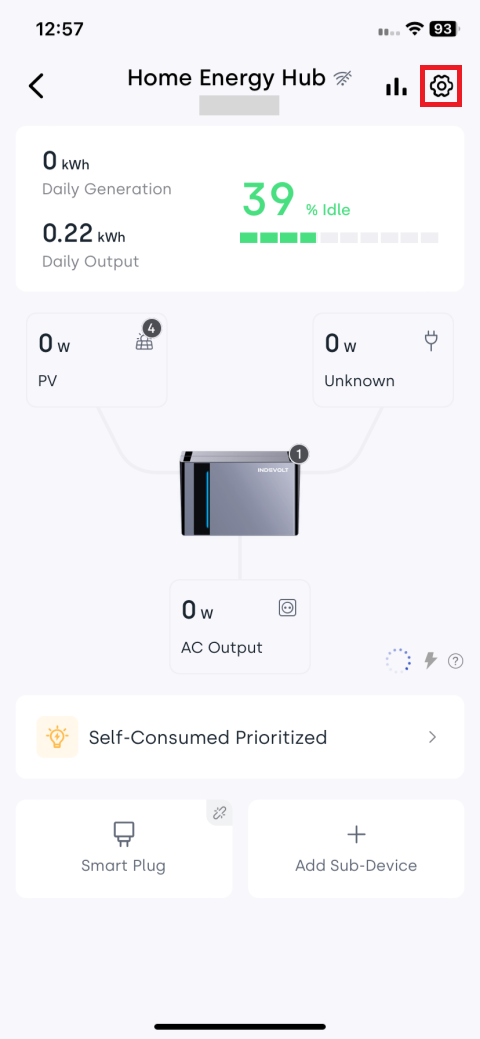

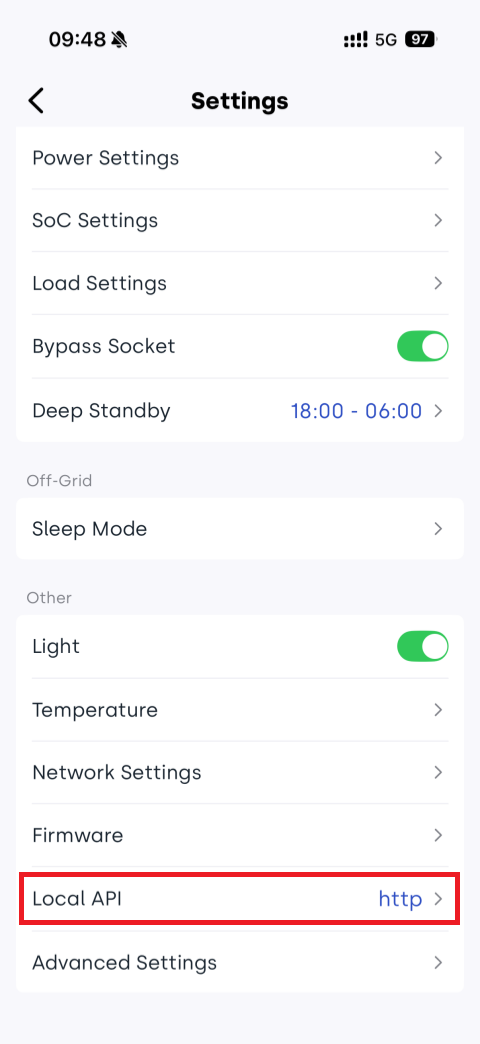

You can enable and configure the local API in the INDEVOLT App:

Step 3: Check Firmware Version

If it is lower than the minimum version listed in the table below, please update the firmware.

Model Applicable firmware version
BK1600/BK1600Ultra V1.3.0A_R006.072_M4848_00000039
SolidFlex2000/PowerFlex2000 CMS：CMS：V1406.07.002E

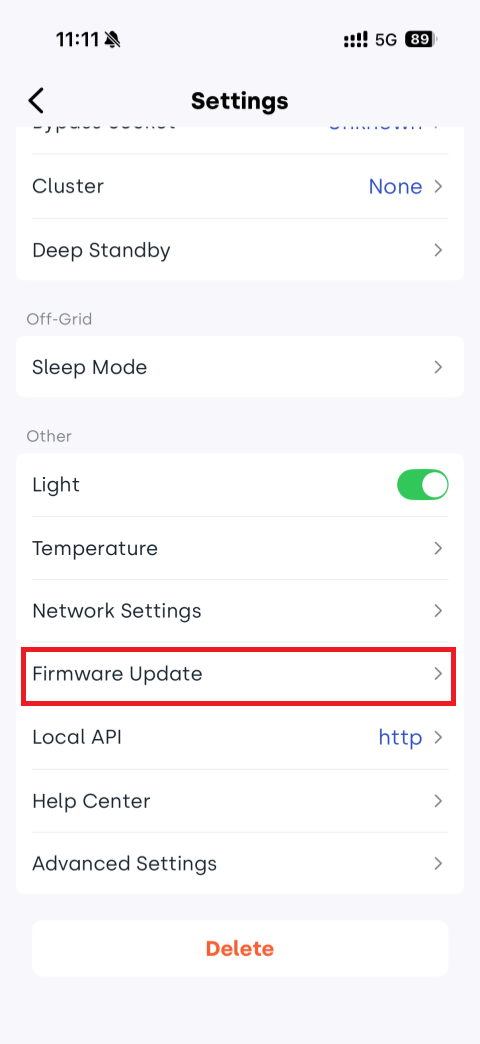

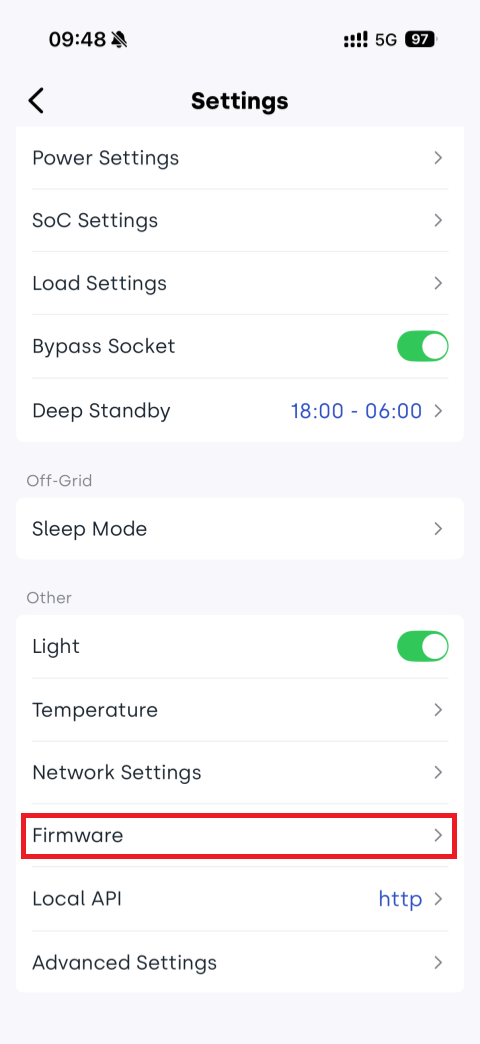

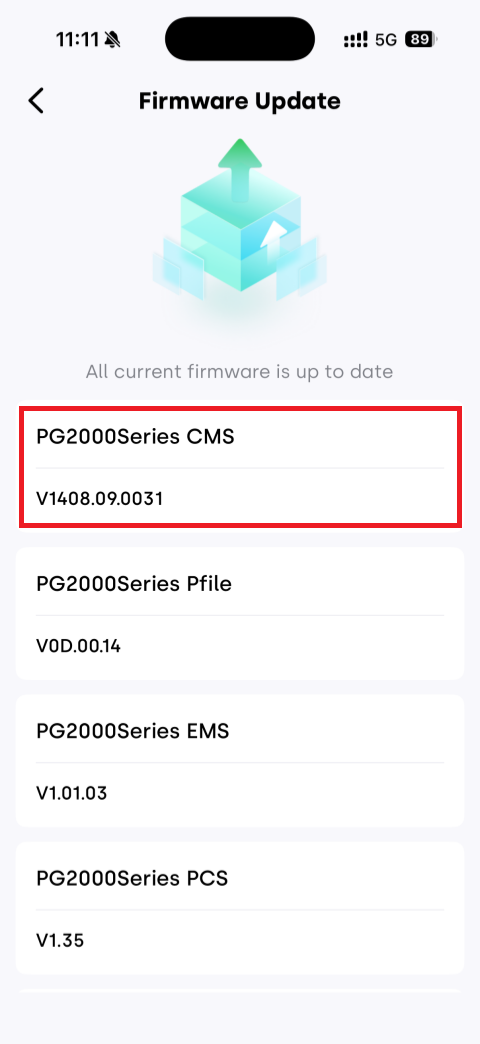

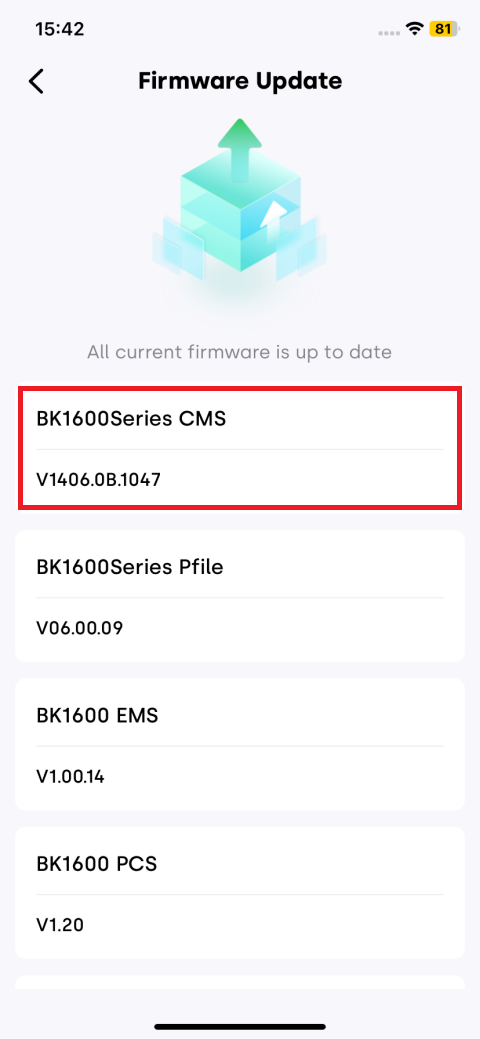

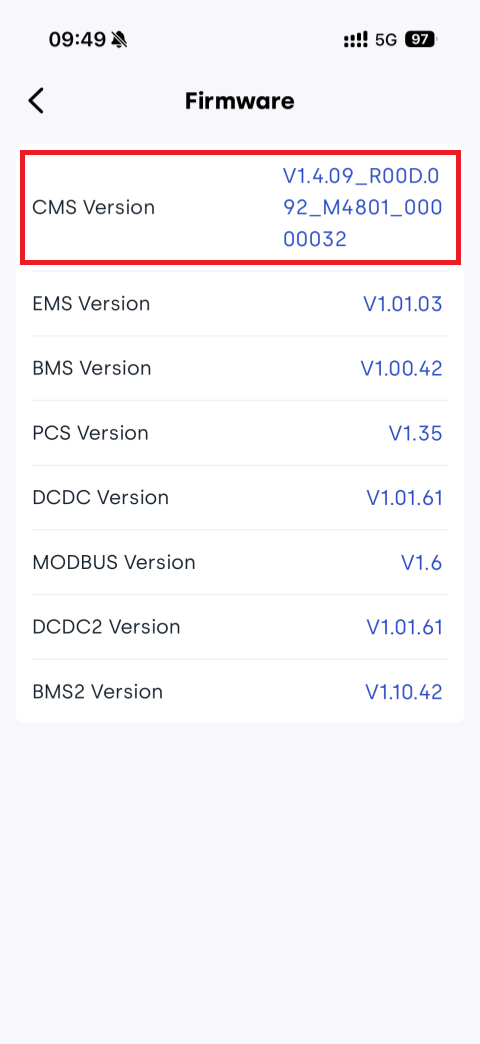

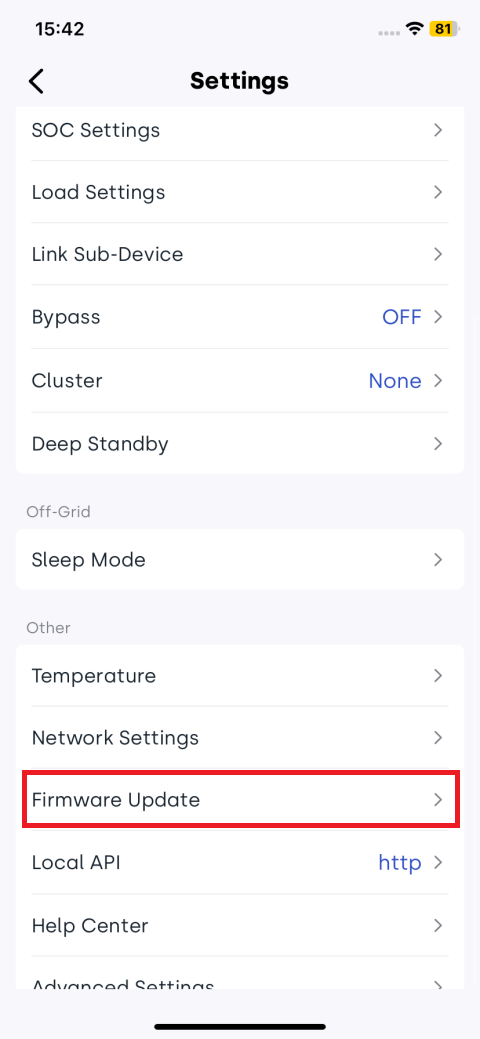

You can check the device firmware version in the INDEVOLT app. Go to the device settings page and open Firmware Update to view the current version.

Model	Applicable firmware version
BK1600/BK1600Ultra	V1.3.0A_R006.072_M4848_00000039
SolidFlex2000/PowerFlex2000	CMS：CMS：V1406.07.002E

Step 4: Obtain IP Address

Choose any one of the following methods:

🧩Method 1: Query via router’s management list;

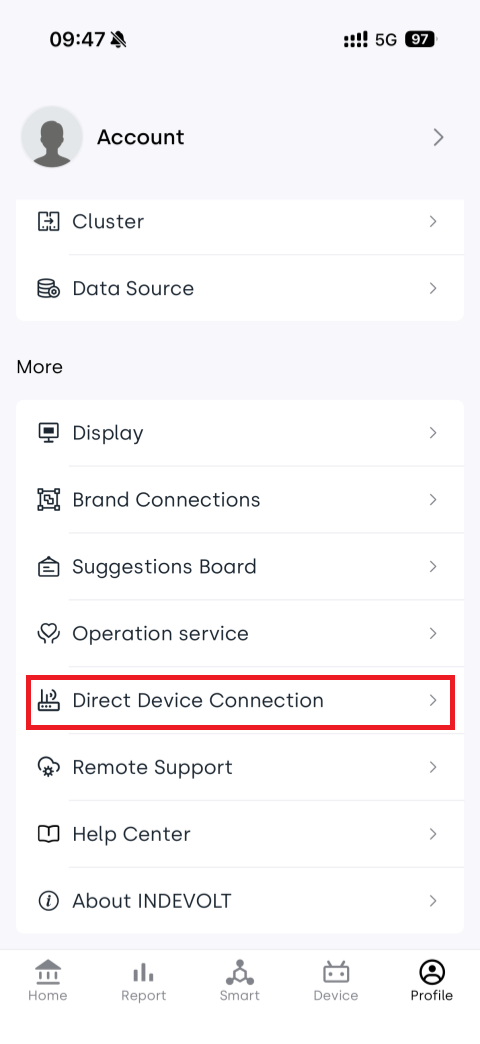

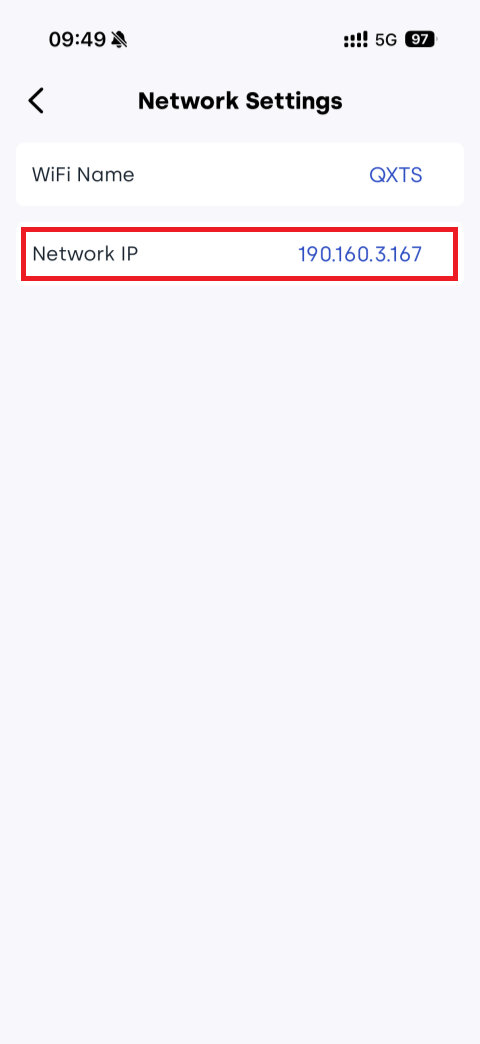

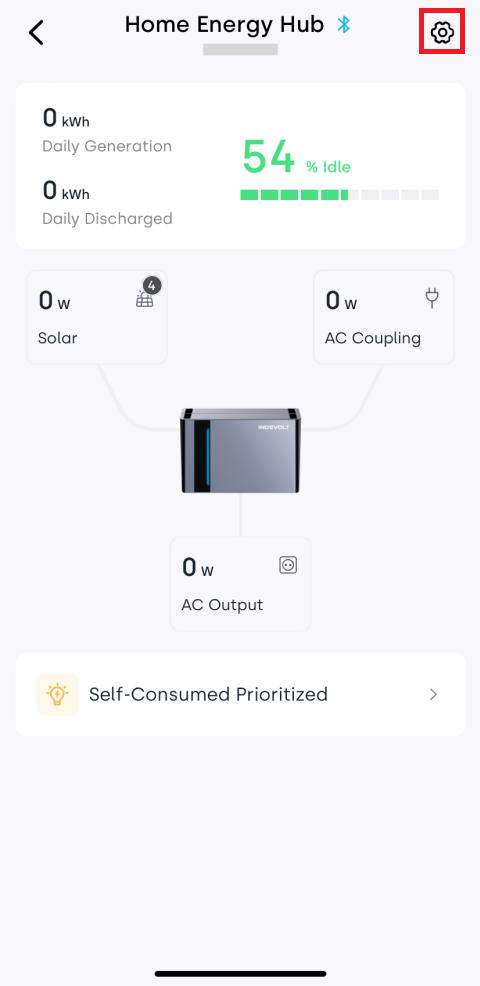

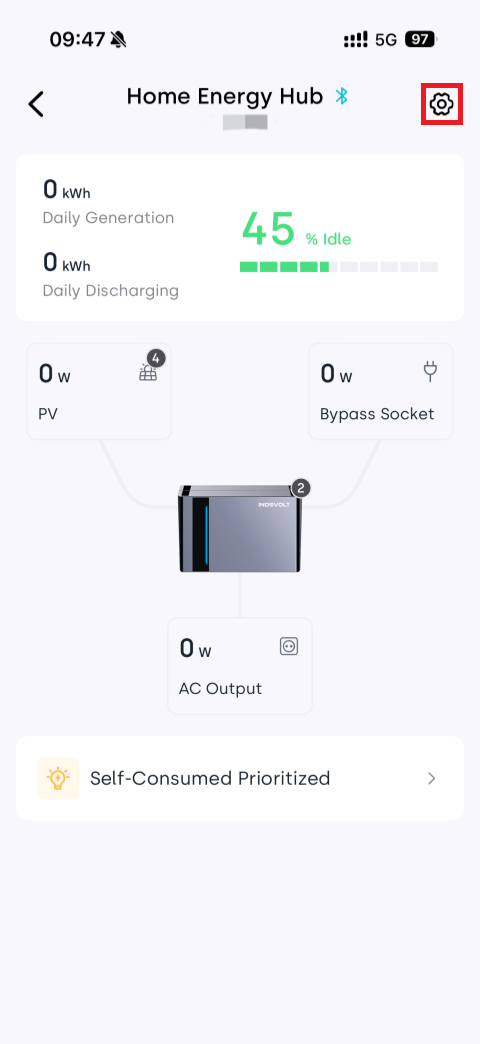

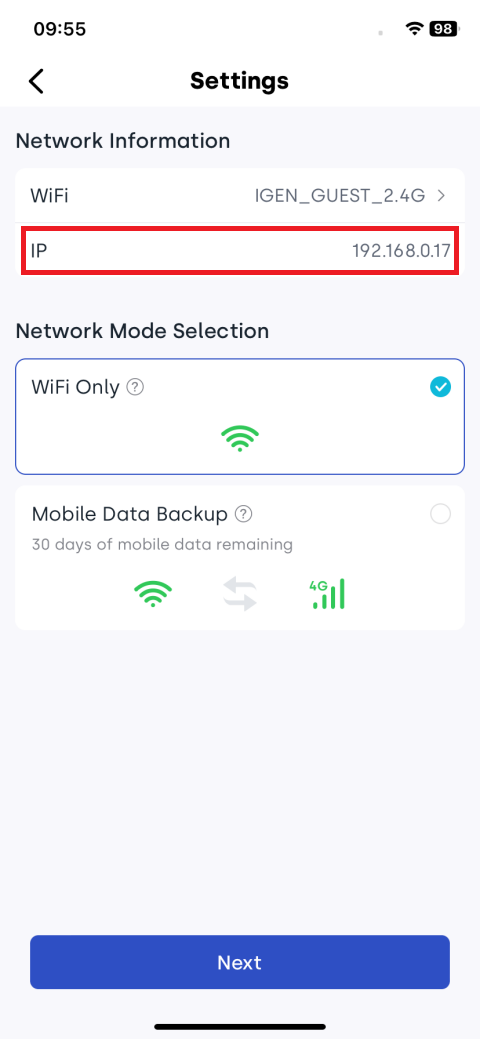

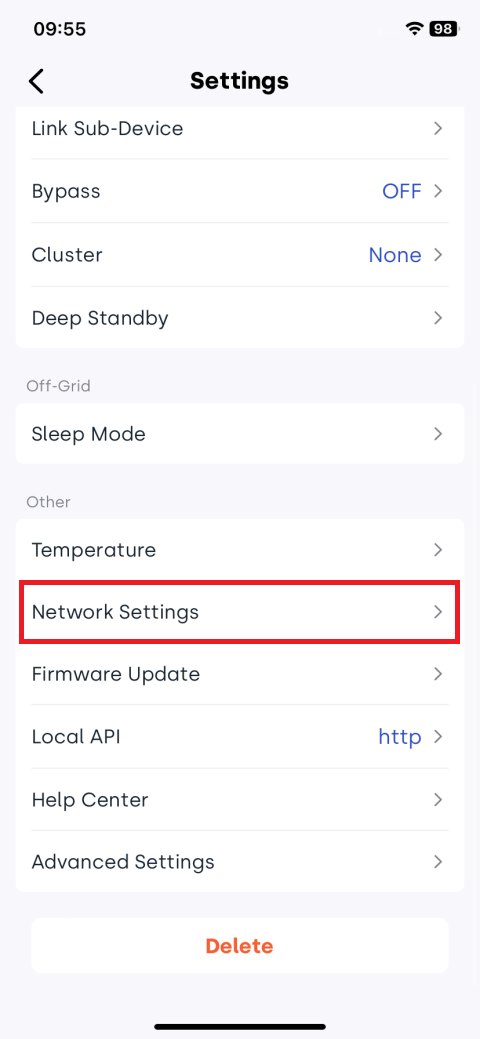

🧩Method 2: Check in App device settings:

🧩Method 3: Obtain IP via UDP broadcast:

(1) Ensure the device's WiFi network and computer are on the same local area network.
(2) Open a network debugging tool.
(3) Select UDP protocol.
(4) Select Local Host Addr.
(5) Set Local Host Post to 10000.
(6) Click Open.

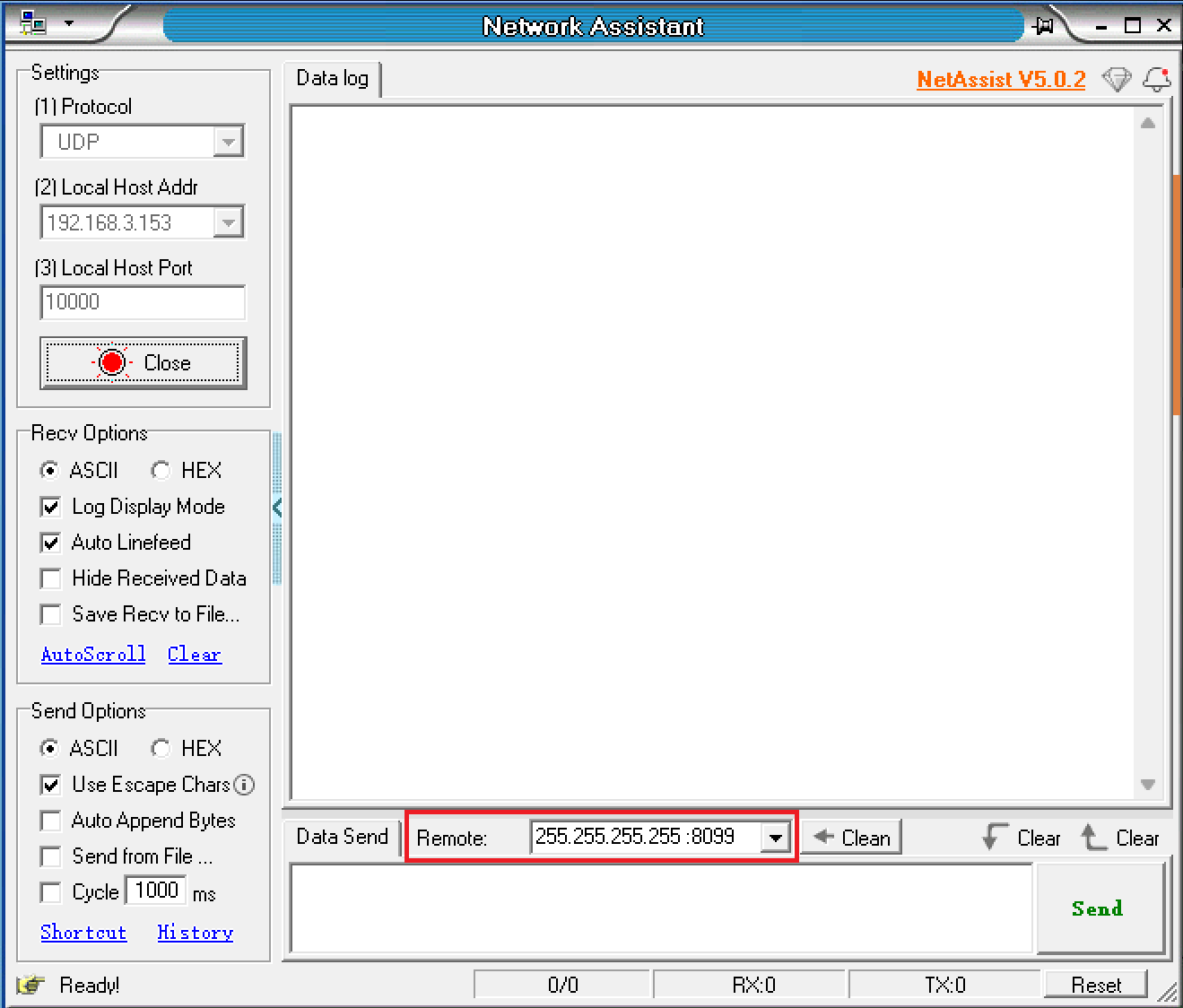

(7) Configure Remote with broadcast address and port: 255.255.255.255:8099.

(8) Enter AT command in message box: AT+IGDEVICEIP.
(9) Click Send.

(10) INDEVOLT devices on the same network will respond with their IP address and serial number (SN).

3️⃣ HTTP Usage

3.1 Request Structure

Request Methods

Method	Description
GET	Requests the server to return specified resources.
POST	Requests the server to perform specified operations.

Request Address

http://{IP_ADDRESS}:8080/rpc/{API}

where

{IP_ADDRESS}: Device IP address.
{API}: HTTP API to be invoked.

Request Example

Retrieve device data:

POST http://192.168.31.213:8080/rpc/Indevolt.GetData?config={"t":[1664,1665]}

cURL command Example

Retrieve battery SOC:

curl -g -X POST -H "Content-Type: application/json" "http://192.168.1.75:8080/rpc/Indevolt.GetData?config={\"t\":[6002]}"

3.2 Digest Authentication

Digest Authentication verifies user identity in network communications, preventing plaintext password transmission.

In HTTP + Digest mode:

New or factory-reset devices must first use the User.SetConfig interface to modify the default password.
Other APIs become accessible only after successful password modification.

Required tools

ASCII to hexadecimal converter
Hexadecimal to base64 converter
AES_GCM encryption tool

Password modification example

Convert the new password, original password, and random number from string to hexadecimal.

	ASCII string	Hexadecimal
New password	qwertyui	71 77 65 72 74 79 75 69
Original password	qazwsxed	71 61 7a 77 73 78 65 64 00 00 00 00 00 00 00 00 (Supplement 0 to 16 bytes)
Random number	123456	31 32 33 34 35 36 00 00 00 00 00 00 (Supplement 0 to 12 bytes)

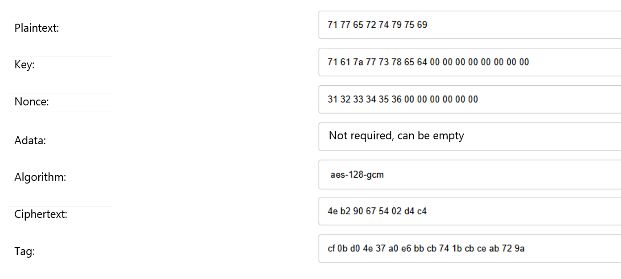

Use AES_GCM encryption tool to encrypt, fill in the corresponding information as follows.
Convert ciphertext and tag from hexadecimal to base64.

	Hexadecimal	Base64
Ciphertext	4e b2 90 67 54 02 d4 c4	TrKQZ1QC1MQ=
Tag	cf 0b d0 4e 37 a0 e6 bb cb 74 1b cb ce ab 72 9a	zwvQTjeg5rvLdBvLzqtymg==

Complete the digest authentication fields and send the User.SetConfig request with the new password. The result returns true, indicating successful modification.

POST http://{IP_ADDRESS}:8080/rpc/User.SetConfig?config={"Password":"{PASSWORD}"}

where
- {IP_ADDRESS}：Device IP address.
- {PASSWORD}：Base64-encoded ciphertext encrypted with AES128-GCM.

Parameter	Type	Describe	Attribute
Username	String	Default `opend`	required
Password	String	Default device key. - Using the default password can only request the `User.SetConfig` interface to change the password. - Once the password is modified, using the modified password can request other interfaces.	required
Realm	String	- If calling the `User.SetConfig` interface to update the password, you need to pass the AES128-GCM tag value. - If calling other interfaces in Base64 format, you may use a random value.	required
Nonce	Default type of Digest	Random values can be used	required
Algorithm	Default type of Digest	MD5	required
qop	Default type of Digest	auth	required
Nonce Count	Default type of Digest	Random values can be used	required
Client Nonce	Default type of Digest	Random values can be used	required

3.3 Errors

Status code	Description	Explanation
400	Bad Request	The server cannot understand the format of the request; the client should modify the request and try again.
401	Unauthorized	The request requires authentication; the client needs to provide valid credentials.
403	Forbidden	The server understands the request but refuses to execute it, usually due to permission issues.
404	Not Found	The server cannot find the requested resource, possibly because the resource does not exist or has been deleted.
405	Method Not Allowed	The requested method is incompatible with the resource, for example, performing a write operation on a read-only resource.
408	Request Timeout	The server times out while waiting for the request; the client can retry later.
409	Conflict	The request conflicts with the current state of the resource, for example, multiple users editing the same resource simultaneously.
410	Gone	The requested resource has been permanently deleted and there is no new address.
500	Internal Server Error	The server encounters an unknown error and cannot complete the request.
501	Not Implemented	The server does not support the requested method and cannot execute it.
502	Bad Gateway	The server, acting as a gateway or proxy, received an invalid response from the upstream server.
503	Service Unavailable	The server is currently unable to handle the request, possibly due to overload or maintenance.
504	Gateway Timeout	The server, acting as a gateway or proxy, did not receive a timely response from the upstream server.
505	HTTP Version Not Supported	The server does not support the HTTP version used in the request.

4️⃣ HTTP API

Component	Description
`Indevolt`	Retrieve device data and control device.
`Sys`	Obtain CMS (Communication Management System) information.

5️⃣ `Indevolt`

Indevolt allows you to retrieve real-time device data and send control commands by making standard HTTP requests.

5.1. Retrieve device data

Example

Request

POST http://192.168.31.213:8080/rpc/Indevolt.GetData?config={"t":[1664,1665]}
Response
```
{
 "1664":100,
 "1665":251
}
```

Function: Indevolt.GetData

Parameter

Parameter Type Description
config Object t: The request address for data, specified in the cJSON Point column of the table below.

Return value

Device data in JSON format.

SolidFlex2000/PowerFlex2000
BK1600/BK1600Ultra
cJSON Point cJSON Value Type Unit Description Enum Definition
SN
0 String Device SN
Firmware Version Information
1118 String PG2000Series EMS
1109 String PG2000Series BMS-MB
1119 String PG2000Series PCS
1120 String PG2000Series DCDC
1136 String SFA/PFA DCDC1
1137 String SFA/PFA BMS1
1138 String SFA/PFA DCDC2
1139 String SFA/PFA BMS2
1140 String SFA/PFA DCDC3
1141 String SFA/PFA BMS3
1142 String SFA/PFA DCDC4
1143 String SFA/PFA BMS4
1098 String SFA/PFA DCDC5
1099 String SFA/PFA BMS5
System Operating Information
7101 Enum Working Mode 1: Self-consumed Prioritized
4: Real-time Control
5: Charge/Discharge Sc hedule
142 Num kWh Rated Capacity
2618 Num Grid Charging 1000: Disable
1001: Enable
11009 Num W Inverter Input Limit
2101 Num W Total AC Input Power
2108 Num W Total AC Output Power
11010 Num W Feed-in Power Limit
11011 Num W Max AC Output Power
680 Num Bypass 0: Disable
1: Enable
6105 Num % Backup SOC
7171 Num Light 0: Disable
1: Enable
Cluster Information
606 Enum Master-slave identification 1000: Master
1001: Slave
1002: None
Bypass Power
667 Float W Bypass power
Electrical Energy Information
2107 Num kWh Total AC Input Energy
2104 Num kWh Total AC Output Energy
2105 Num kWh Off-grid Output Energy
11034 Num Wh Bypass Input Energy
1502 Num kWh Daily PV Generation
6004 Num kWh Battery Daily Charging Energy
6005 Num kWh Battery Daily Discharging Energy
6006 Num kWh Battery Total Charging Energy
6007 Num kWh Battery Total Discharging Energy
Electricity Meter Status
7120 Enum Meter Connection Status 1000: Enable
1001: Disable
11016 Float W Meter Power
Grid Information
2600 Num V Grid Voltage
2612 Num Hz Grid Frequency
Battery Pack Operating Parameters
6001 Enum Battery Charge/Discharge State 1000: Static
1001: Charging
1002: Discharging
6000 Num W Battery Power
6002 Num % Battery SOC Total
9008 String Batt SN-MB
9000 Num % Batt SOC-MB
9004 Num V Batt V-MB
9013 Num A Batt I-MB
9012 Num ℃ Batt Temp-MB
9009 Num V Batt Cell1 V-MB
9011 Num V Batt Cell2 V-MB
9032 String Batt SN-Pack1
9016 Num % Batt SOC-Pack1
9020 Num V Batt V-Pack1
19173 Num A Batt I-Pack1
9030 Num ℃ Batt Temp-Pack1
9021 Num V Batt Cell1 V-Pack1
9023 Num V Batt Cell2 V-Pack1
9051 String Batt SN-Pack2
9035 Num % Batt SOC-Pack2
9039 Num V Batt V-Pack2
19174 Num A Batt I-Pack2
9049 Num ℃ Batt Temp-Pack2
9040 Num V Batt Cell1 V-Pack2
9042 Num V Batt Cell2 V-Pack2
9070 String Batt SN-Pack3
9054 Num % Batt SOC-Pack3
9058 Num V Batt V-Pack3
19175 Num A Batt I-Pack3
9068 Num ℃ Batt Temp-Pack3
9059 Num V Batt Cell1 V-Pack3
9061 Num V Batt Cell2 V-Pack3
9165 Num Batt SN-Pack4
9149 Num % Batt SOC-Pack4
9153 Num V Batt V-Pack4
19176 Num A Batt I-Pack4
9163 Num ℃ Batt Temp-Pack4
9154 Num V Batt Cell1 V-Pack4
9156 Num V Batt Cell2 V-Pack4
9218 String Batt SN-Pack5
9202 Num % Batt SOC-Pack5
9206 Num V Batt V-Pack5
19177 Num A Batt I-Pack5
9216 Num ℃ Batt Temp-Pack5
9219 Num V Batt Cell1 V-Pack5
9222 Num V Batt Cell2 V-Pack5
PV Operating Parameters
1501 Num W Total DC Output Power
1632 Num A DC Input Current 1
1600 Num V DC Input Voltage 1
1664 Num W DC Input Power 1
1633 Num A DC Input Current 2
1601 Num V DC Input Voltage 2
1665 Num W DC Input Power 2
1634 Num A DC Input Current 3
1602 Num V DC Input Voltage 3
1666 Num W DC Input Power 3
1635 Num A DC Input Current 4
1603 Num V DC Input Voltage 4
1667 Num W DC Input Power 4

Parameter	Type	Description
config	Object	`t`: The request address for data, specified in the `cJSON Point` column of the table below.

cJSON Point	cJSON Value Type	Unit	Description	Enum Definition
SN
0	String		Device SN
Firmware Version Information
1118	String		PG2000Series EMS
1109	String		PG2000Series BMS-MB
1119	String		PG2000Series PCS
1120	String		PG2000Series DCDC
1136	String		SFA/PFA DCDC1
1137	String		SFA/PFA BMS1
1138	String		SFA/PFA DCDC2
1139	String		SFA/PFA BMS2
1140	String		SFA/PFA DCDC3
1141	String		SFA/PFA BMS3
1142	String		SFA/PFA DCDC4
1143	String		SFA/PFA BMS4
1098	String		SFA/PFA DCDC5
1099	String		SFA/PFA BMS5
System Operating Information
7101	Enum		Working Mode	1: Self-consumed Prioritized 4: Real-time Control 5: Charge/Discharge Sc hedule
142	Num	kWh	Rated Capacity
2618	Num		Grid Charging	1000: Disable 1001: Enable
11009	Num	W	Inverter Input Limit
2101	Num	W	Total AC Input Power
2108	Num	W	Total AC Output Power
11010	Num	W	Feed-in Power Limit
11011	Num	W	Max AC Output Power
680	Num		Bypass	0: Disable 1: Enable
6105	Num	%	Backup SOC
7171	Num		Light	0: Disable 1: Enable
Cluster Information
606	Enum		Master-slave identification	1000: Master 1001: Slave 1002: None
Bypass Power
667	Float	W	Bypass power
Electrical Energy Information
2107	Num	kWh	Total AC Input Energy
2104	Num	kWh	Total AC Output Energy
2105	Num	kWh	Off-grid Output Energy
11034	Num	Wh	Bypass Input Energy
1502	Num	kWh	Daily PV Generation
6004	Num	kWh	Battery Daily Charging Energy
6005	Num	kWh	Battery Daily Discharging Energy
6006	Num	kWh	Battery Total Charging Energy
6007	Num	kWh	Battery Total Discharging Energy
Electricity Meter Status
7120	Enum		Meter Connection Status	1000: Enable 1001: Disable
11016	Float	W	Meter Power
Grid Information
2600	Num	V	Grid Voltage
2612	Num	Hz	Grid Frequency
Battery Pack Operating Parameters
6001	Enum		Battery Charge/Discharge State	1000: Static 1001: Charging 1002: Discharging
6000	Num	W	Battery Power
6002	Num	%	Battery SOC Total
9008	String		Batt SN-MB
9000	Num	%	Batt SOC-MB
9004	Num	V	Batt V-MB
9013	Num	A	Batt I-MB
9012	Num	℃	Batt Temp-MB
9009	Num	V	Batt Cell1 V-MB
9011	Num	V	Batt Cell2 V-MB
9032	String		Batt SN-Pack1
9016	Num	%	Batt SOC-Pack1
9020	Num	V	Batt V-Pack1
19173	Num	A	Batt I-Pack1
9030	Num	℃	Batt Temp-Pack1
9021	Num	V	Batt Cell1 V-Pack1
9023	Num	V	Batt Cell2 V-Pack1
9051	String		Batt SN-Pack2
9035	Num	%	Batt SOC-Pack2
9039	Num	V	Batt V-Pack2
19174	Num	A	Batt I-Pack2
9049	Num	℃	Batt Temp-Pack2
9040	Num	V	Batt Cell1 V-Pack2
9042	Num	V	Batt Cell2 V-Pack2
9070	String		Batt SN-Pack3
9054	Num	%	Batt SOC-Pack3
9058	Num	V	Batt V-Pack3
19175	Num	A	Batt I-Pack3
9068	Num	℃	Batt Temp-Pack3
9059	Num	V	Batt Cell1 V-Pack3
9061	Num	V	Batt Cell2 V-Pack3
9165	Num		Batt SN-Pack4
9149	Num	%	Batt SOC-Pack4
9153	Num	V	Batt V-Pack4
19176	Num	A	Batt I-Pack4
9163	Num	℃	Batt Temp-Pack4
9154	Num	V	Batt Cell1 V-Pack4
9156	Num	V	Batt Cell2 V-Pack4
9218	String		Batt SN-Pack5
9202	Num	%	Batt SOC-Pack5
9206	Num	V	Batt V-Pack5
19177	Num	A	Batt I-Pack5
9216	Num	℃	Batt Temp-Pack5
9219	Num	V	Batt Cell1 V-Pack5
9222	Num	V	Batt Cell2 V-Pack5
PV Operating Parameters
1501	Num	W	Total DC Output Power
1632	Num	A	DC Input Current 1
1600	Num	V	DC Input Voltage 1
1664	Num	W	DC Input Power 1
1633	Num	A	DC Input Current 2
1601	Num	V	DC Input Voltage 2
1665	Num	W	DC Input Power 2
1634	Num	A	DC Input Current 3
1602	Num	V	DC Input Voltage 3
1666	Num	W	DC Input Power 3
1635	Num	A	DC Input Current 4
1603	Num	V	DC Input Voltage 4
1667	Num	W	DC Input Power 4

cJSON Point	cJSON Value Type	Unit	Description	Enum Definition
0	Float		Device SN
7101	Enum		Working mode	0: Outdoor Portable 1: Self-consumed Prioritized 5: Charge/Discharge Schedule
1664	Float	W	DC Input Power1
1665	Float	W	DC Input Power2
2108	Float	W	Total AC Output Power
1502	Float	kWh	Daily Production
1505	Float	0.001kWh	Cumulative Production
2101	Float	W	Total AC Input Power
2107	Float	kWh	Total AC Input Energy
1501	Float	W	Total DC Output Power
6000	Float	W	Battery Power
6001	Enum		Battery Charge/Discharge State	1000: Static 1001: Charging 1002: Discharging
6002	Float	%	Battery SOC
6105	Float	%	Emergency power supply
6004	Float	kWh	Battery Daily Charging Energy
6005	Float	kWh	Battery Daily Discharging Energy
6006	Float	kWh	Battery Total Charging Energy
6007	Float	kWh	Battery Total Discharging Energy
7120	Enum		Meter Connection Status	1000: Enable 1001: Disable
21028	Float	W	Meter Power

5.2. Control device

Example: Set working mode

Request

POST http://192.168.31.213:8080/rpc/Indevolt.SetData?config={"f":16,"t":47005,"v":[4]}
Response
```
{"result": true}
```

Example: Set discharging state, power and SOC

Request

POST http://192.168.31.213:8080/rpc/Indevolt.SetData?config={"f":16,"t":47015,"v":[2,700,5]}
Response
```
{"result": true}
```

Function: Indevolt.SetData

Parameter

Parameter Type Description
config Object f: function code, 16 by default;
t: register address, see the cJSON Point column in the table below;
v: write value, see the Value column in the table below.

SolidFlex2000/PowerFlex2000
BK1600/BK1600Ultra
cJSON Point cJSON Value Type Unit Description Value
47005 Enum Mode Setting 1: Self-consumed Prioritized
4: Real-time control
5: Charge/Discharge Schedule
47015 UINT State Setting (Only available in real-time control) 0: Standby
1: Charging
2: Discharging
47016 INT W Power Setting (Only available in real-time control) MAX Charging: 50–2400
MAX Discharging: 50–2400
47017 UINT % SOC Settingt (Only available in real-time control) 5-100
1147 INT W Max AC Output Power Setting 50-2400
1146 INT W Feed-in Power Limit Setting 50-2400
1143 UINT Grid Charging Setting 0: Disable
1: Enable
1138 INT W Inverter Input Limit Setting 50-2400
1 Enum Load Setting 1: Smart Plug
2: Meter
3: Key Load
4: Custom
7266 Enum Bypass Setting 0: Disable
1: Enable
1142 INT % Backup SOC Setting
7265 Enum Light Setting 0: Disable
1: Enable

info
In real-time control mode, device charging/discharging can be controlled by simultaneously writing state, power, and SOC values.

Return value

Parameter Type Description
result Bool true: success; false: failure.

Parameter	Type	Description
config	Object	`f`: function code, 16 by default; `t`: register address, see the `cJSON Point` column in the table below; `v`: write value, see the `Value` column in the table below.

cJSON Point	cJSON Value Type	Unit	Description	Value
47005	Enum		Mode Setting	1: Self-consumed Prioritized 4: Real-time control 5: Charge/Discharge Schedule
47015	UINT		State Setting (Only available in real-time control)	0: Standby 1: Charging 2: Discharging
47016	INT	W	Power Setting (Only available in real-time control)	MAX Charging: 50–2400 MAX Discharging: 50–2400
47017	UINT	%	SOC Settingt (Only available in real-time control)	5-100
1147	INT	W	Max AC Output Power Setting	50-2400
1146	INT	W	Feed-in Power Limit Setting	50-2400
1143	UINT		Grid Charging Setting	0: Disable 1: Enable
1138	INT	W	Inverter Input Limit Setting	50-2400
1	Enum		Load Setting	1: Smart Plug 2: Meter 3: Key Load 4: Custom
7266	Enum		Bypass Setting	0: Disable 1: Enable
1142	INT	%	Backup SOC Setting
7265	Enum		Light Setting	0: Disable 1: Enable

cJSON Point	cJSON Value Type	Unit	Description	Value
47005	Enum		Mode	1: Self-consumed Prioritized 2: Charge/discharge Schedule 4: Real-time Control
47015	UINT		State	0: Standby 1: Charging 2: Discharging
47016	INT	W	Power	Charging: 0-1200 Discharging: 0-800
47017	UINT	%	SOC	0-100

Parameter	Type	Description
`result`	Bool	`true`: success; `false`: failure.

6️⃣ `Sys`

This class is used to obtain firmware version, including CMS (Communication Management System) information.

Example

Request

GET http://192.168.31.213:8080/rpc/Sys.GetConfig

Response

{
  "device": {
    "hostname": "",
    "timezone": 480,
    "type": "CMS-SF2000",
    "sn": "",
    "mac": "7C3E82EF997F",
    "fw": "T1.4.06_ROOD. 072_M4801_0000002C",
    "f_ver": "T1406.07.002C",
    "p_ver": "VOD.00.08",
    "time": "2025-12-18 09:44:57",
    "time_stamp": 1766051097,
    "run_time": 2244
  }
}

Function: Sys.GetConfig

Return value

Parameter Type Description
device Object See the table below for device configuration information.

device configuration

Parameter Type Description
hostname String Device name
timezone Num Timezone
type String Device model
sn String Device serial number
mac String Device MAC address
fw String Device firmware version
f_ver String PG2000Series CMS
p_ver String PG2000Series Pfile
time String Current time
time_stamp Num Current timestamp (in seconds)
run_time Num Device runtime (in seconds)

Parameter	Type	Description
`device`	Object	See the table below for device configuration information.

Parameter	Type	Description
`hostname`	String	Device name
`timezone`	Num	Timezone
`type`	String	Device model
`sn`	String	Device serial number
`mac`	String	Device MAC address
`fw`	String	Device firmware version
`f_ver`	String	PG2000Series CMS
`p_ver`	String	PG2000Series Pfile
`time`	String	Current time
`time_stamp`	Num	Current timestamp (in seconds)
`run_time`	Num	Device runtime (in seconds)

7️⃣ FAQ

Q: HTTP request returns 401 Unauthorized.

Verify the username and password for Digest Authentication.
New/factory-reset devices only support access to the designated interface: User.SetConfig. Refer to Digest Authentication section - other APIs become accessible after successful password modification and authentication with the new password.

Q: Device fails to return IP address after broadcast command.

The OpenData API is not enabled, making this function inactive. Refer to Enable API section.

1️⃣ Introduction​

2️⃣ Preparations​

Step 1: Install Tools​

Step 2: Enable API​

Step 3: Check Firmware Version​

Step 4: Obtain IP Address​

3️⃣ HTTP Usage​

3.1 Request Structure​

3.2 Digest Authentication​

3.3 Errors​

4️⃣ HTTP API​

5️⃣ Indevolt​

5.1. Retrieve device data​

5.2. Control device​

6️⃣ Sys​

7️⃣ FAQ​
